Drilling milling machine

The Optimill universal drill/mill machine combines power, precision and versatility in one robust device. With its generous working range of X 560 mm, Y 195 mm and Z 350 mm, professional MK4/M16 mounting and numerous automatic functions, this machine is the perfect addition to any workshop, maintenance service or training centre. Discover the benefits of effortless milling and drilling on a machine designed for top performance, ease of use and safety.

• Powerful performance: Equipped with a robust two-speed motor (1.1/1.5 kW, 400V) and an oil bath gear transmission, the Optimill guarantees reliable power for every operation.

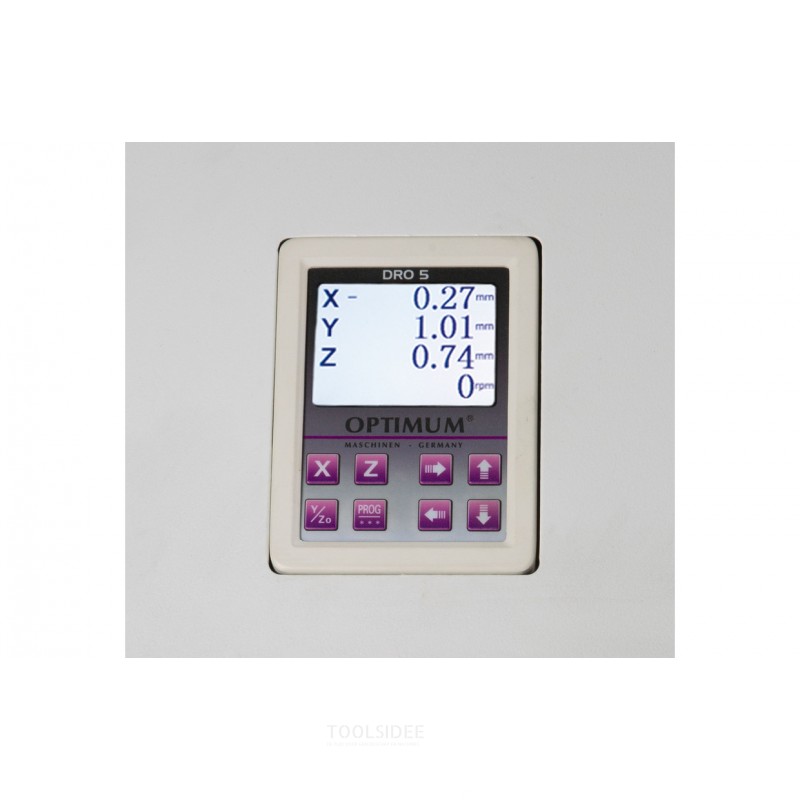

• Maximum accuracy: The 3-axis digital readout and ground spindle ensure consistent results, while the solid cross table with T-slots offers maximum stability.
• Extended functionality:
  • Automatic mechanical drill feeds for efficiency
  • Automatic electronic feed for smooth finishing

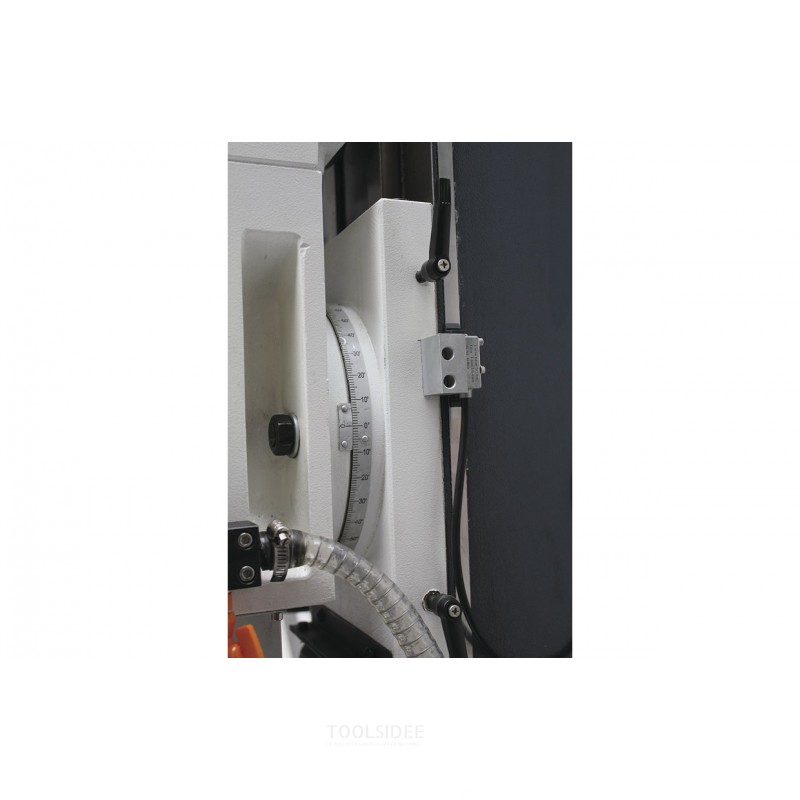

  • Drill milling head easily adjustable at an angle of +/- 60° for flexible use

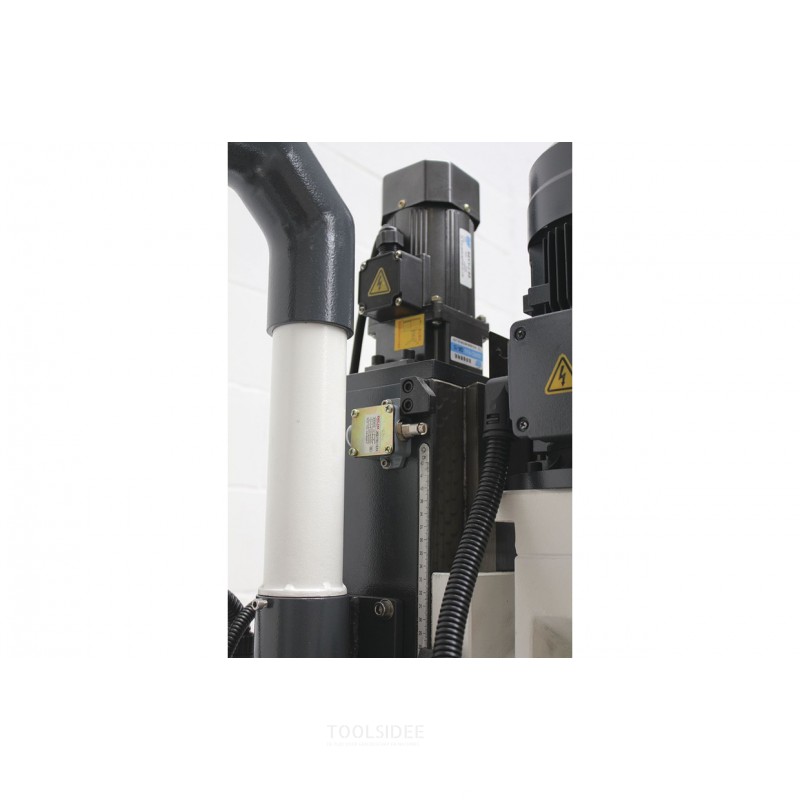

  • Motorized Z-height adjustment for precise positioning
• Complete equipment:

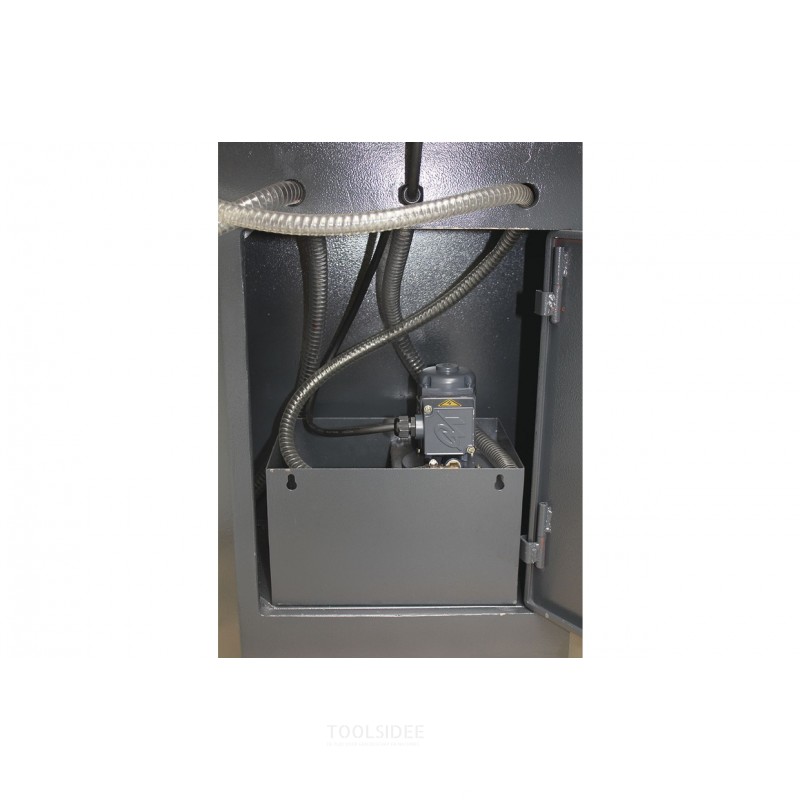

  • Closed coolant system with powerful cooling pump
  • Includes sturdy cast iron base for perfect stability
  • Equipped with mechanically adjustable limit switches on the longitudinal travel
  • Fixing and scale indication on all roads
• Safety first:
  • User-friendly operation with clear start/stop buttons and separate emergency stop
  • Sturdy drill guard equipped with safety switch
  • Lockable main switch and no-load voltage
• Immediately available:
  • Supplied with M16 drawbar, operating keys and Dutch manual
  • CE certified and ready for professional use

Choose the Optimill drill-milling machine and increase efficiency, precision, and safety in your workshop. Reliable, versatile, and delivered with everything you need to get started right away!

Article number: 22102-E
