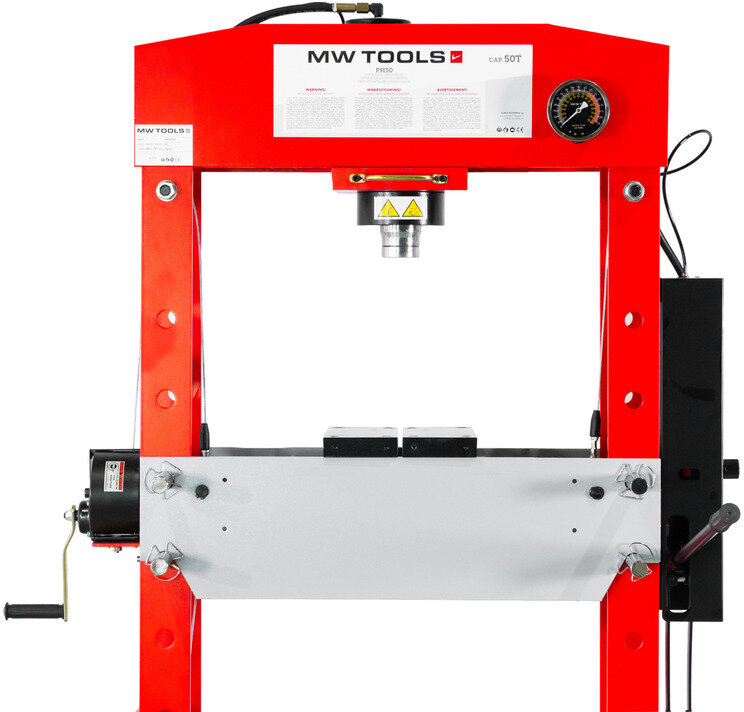

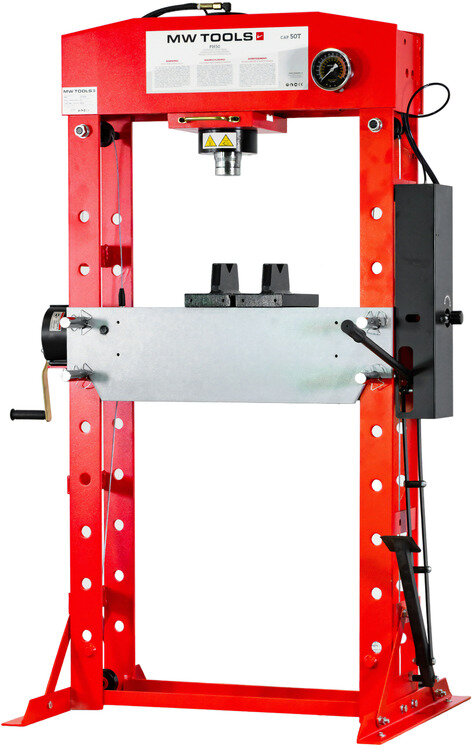

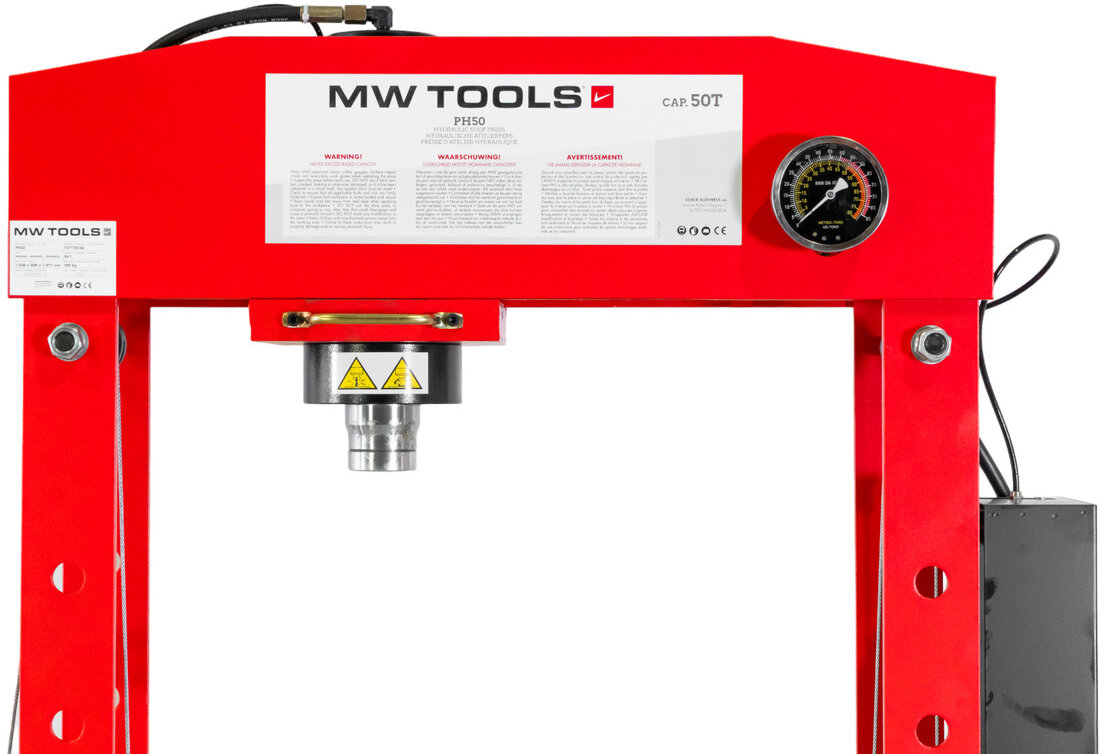

Hydraulic press 50T hand and foot control MW Tools

Experience maximum power, precision, and ease of use with the MW Tools 50T Hydraulic Press. This robust hydraulic press combines hand and foot controls with a mobile cylinder, putting versatility and comfort first in all your pressing tasks.

• Powerful Performance: With an impressive 50-ton capacity, this hydraulic press is ideal for heavy-duty applications such as pressing, straightening, or replacing bushings, seals, and bearings.

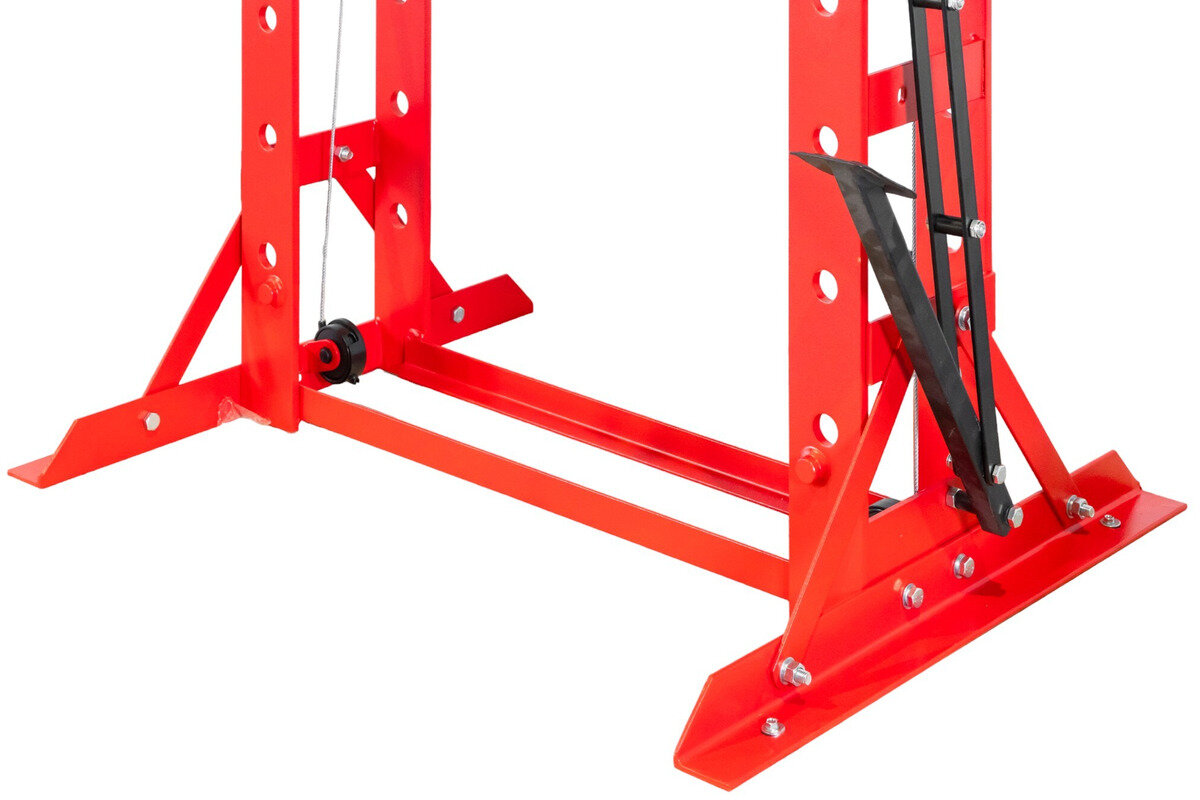

• Dual control: Choose between hand control for delicate precision work, or switch to foot control and keep both hands free for an efficient workflow.

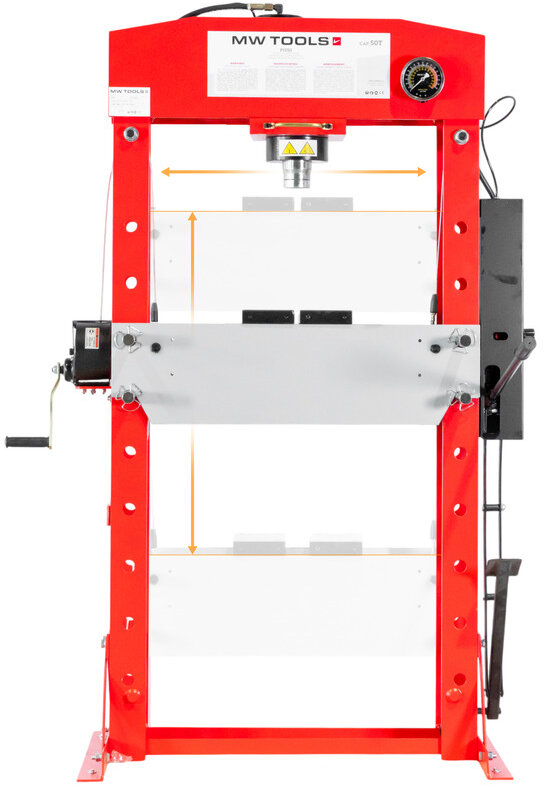

• Mobile cylinder: Thanks to the laterally movable cylinder (245 mm), even working with large, long workpieces becomes easy and flexible.

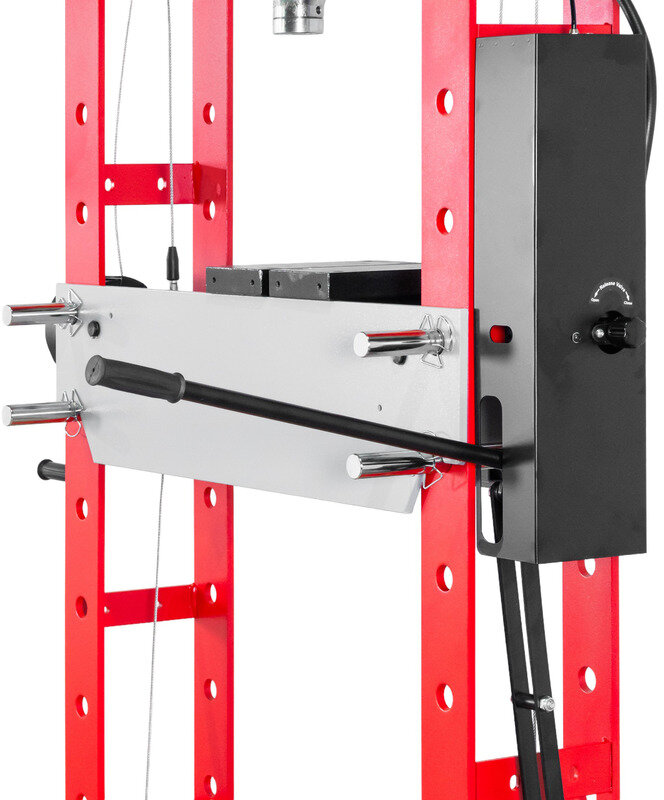

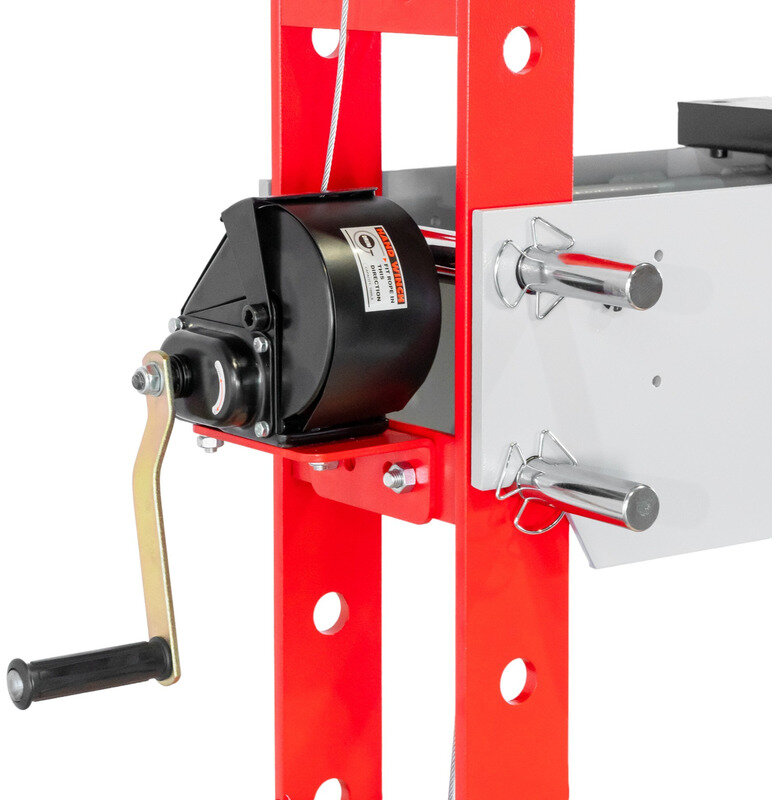

• Adjustable work table: The work table is height-adjustable with a convenient hand winch. Four heavy-duty locking pins with safety clips ensure ease of use and safety.
• Durable Construction: This press is constructed from a fully welded frame with no bolts or screws, ensuring exceptional strength and long life.

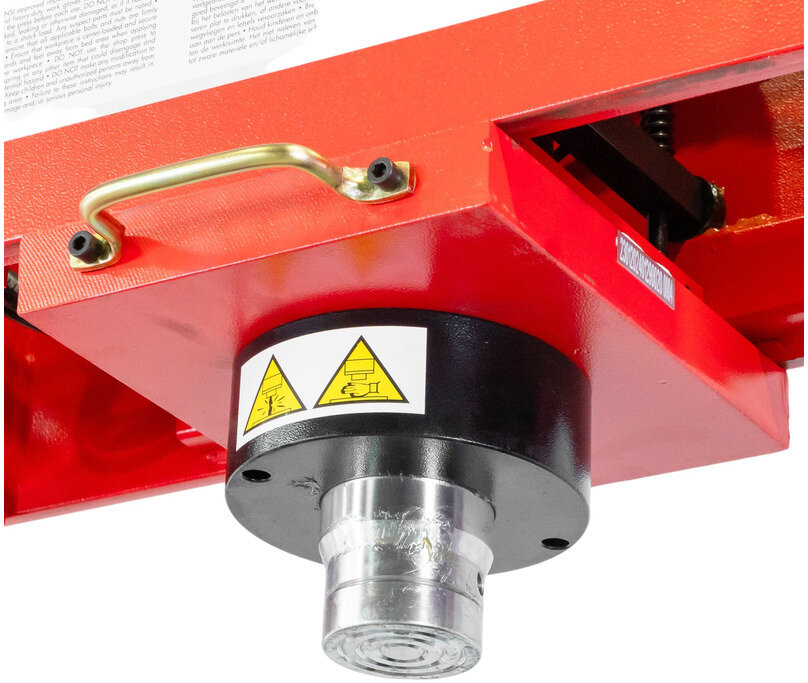

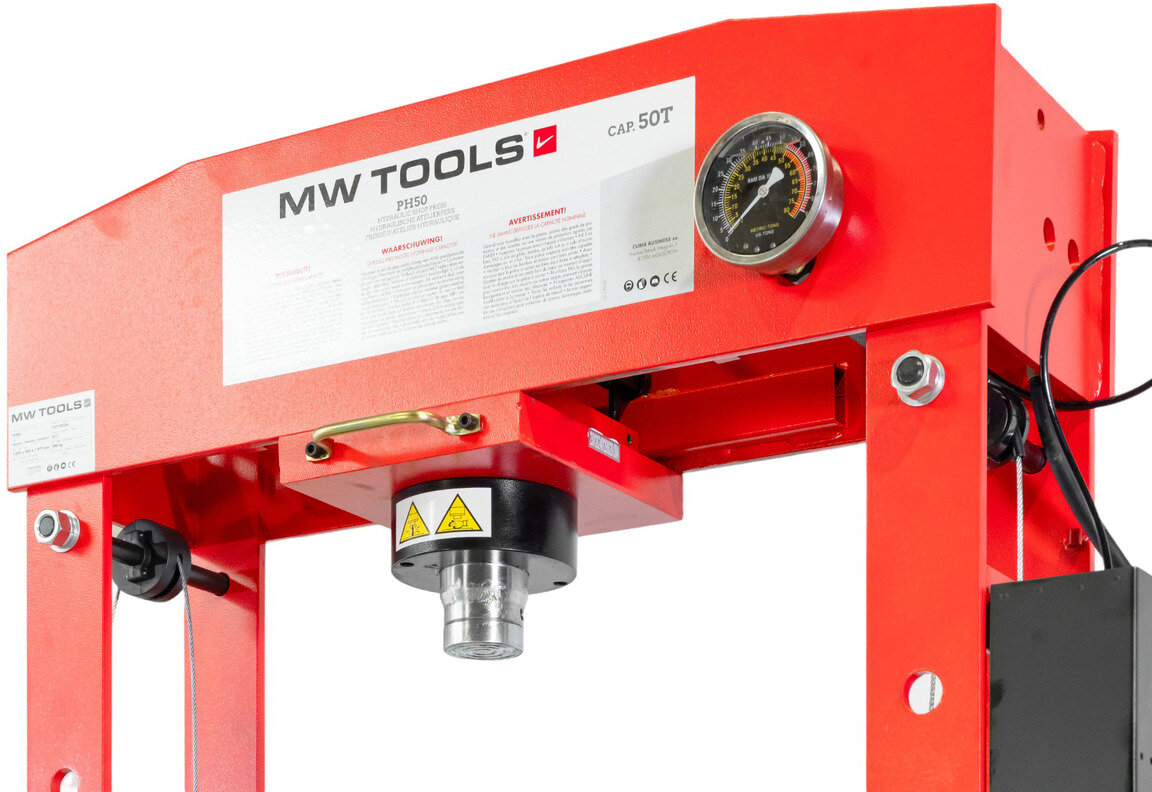

• Safe and precise operation: The reliable pump is equipped with an overload valve and offers double speed. The removable cylinder head makes changing accessories easy.
• Ready for immediate use: The press comes with two sturdy V-blocks, a clear pressure gauge, and is pre-filled with hydraulic oil. Only the side support legs require on-site assembly.

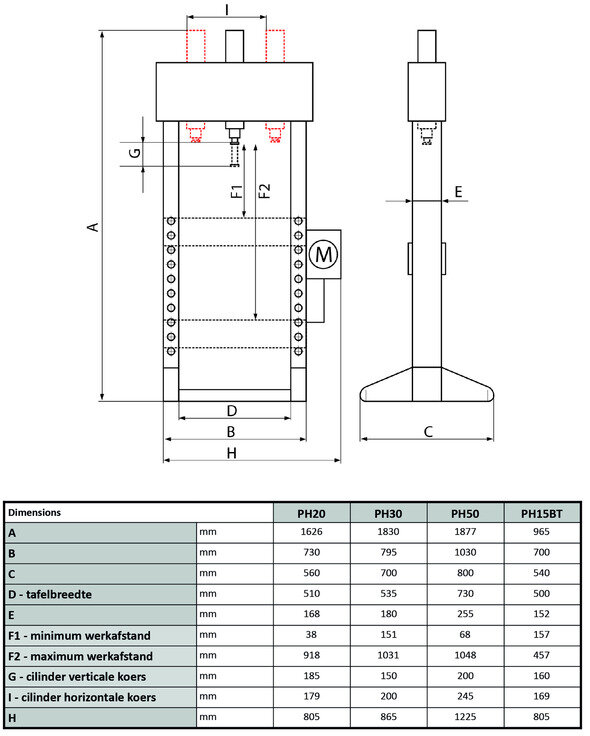

Technical specifications:

• Pressing force: 50 tons
• Cylinder vertical stroke: 200 mm
• Cylinder horizontal stroke (mobile): 245 mm
• Worktable distance to cylinder head: 68 - 1048 mm
• Work table distance to floor: 325 - 1305 mm
• Bed width / space between legs: 730 mm
• Oil tank capacity: 2400 ml

Comes with:

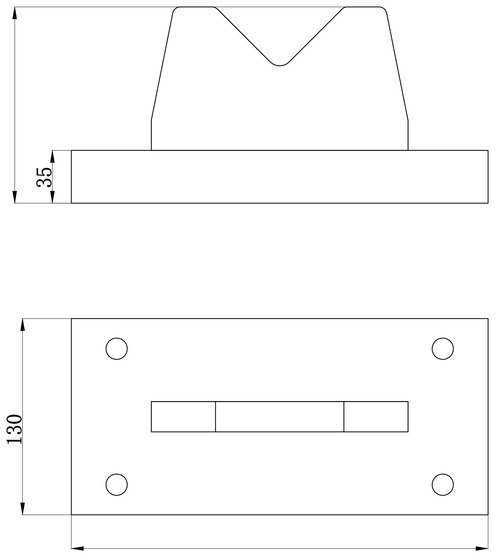

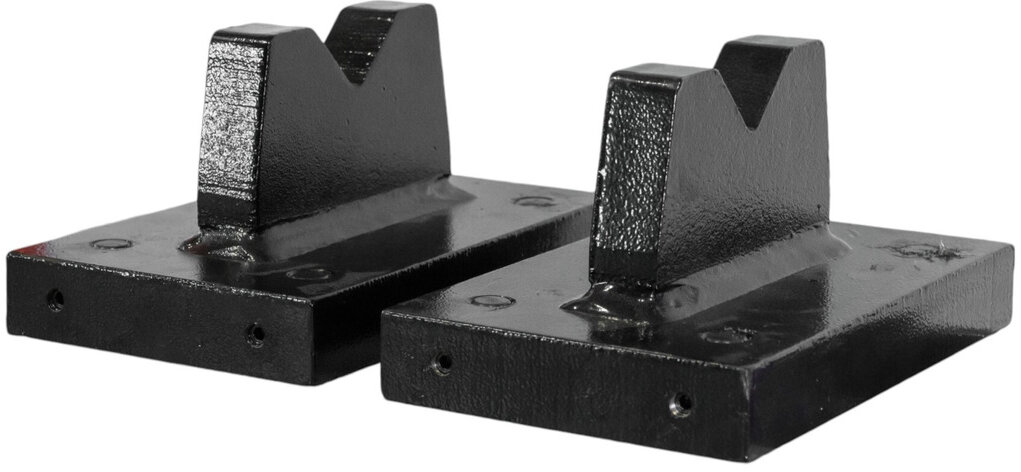

• Set of 2 V-blocks (276 x 130 x 130 mm)

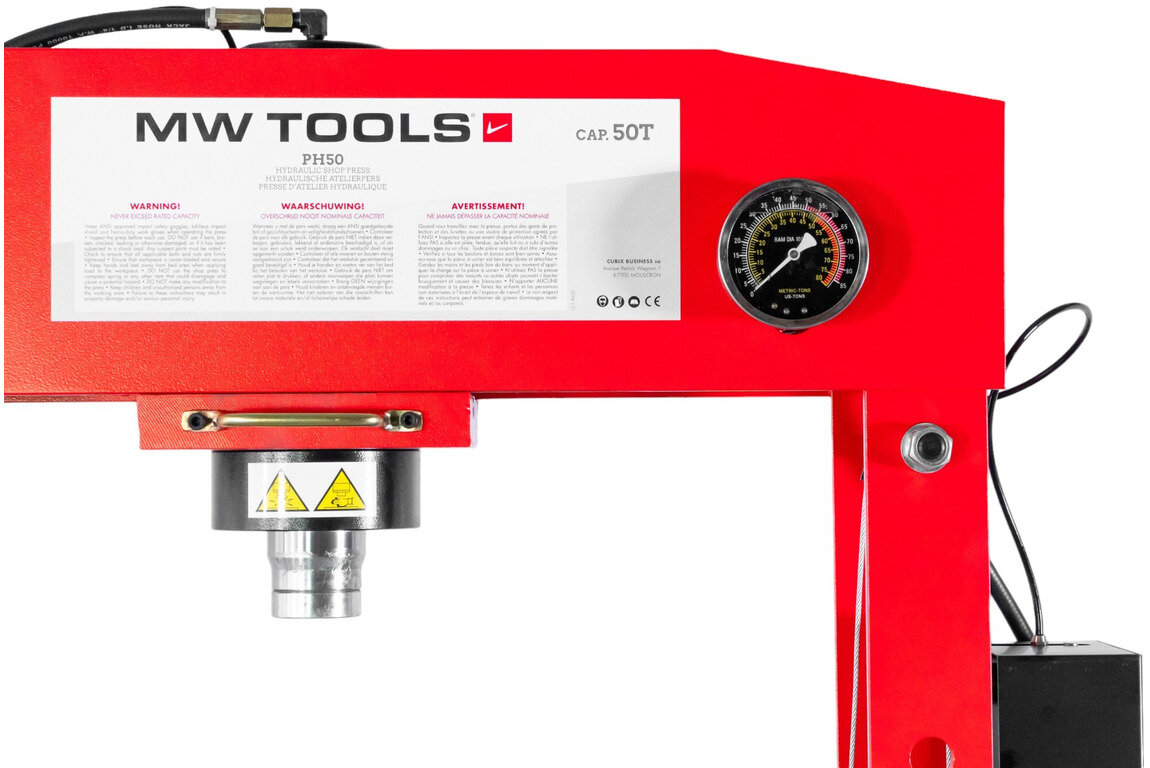

• Pressure gauge with pressure indication
• Pre-filled with hydraulic oil
• Fully pre-assembled (only side support legs still need to be installed)

Optionally available:

• Set of 8 round punches (10-30 mm) with adapter
• Extensive range of push rods (2-25 mm) and guide bushings
• Extra hydraulic oil

The MW Tools 50T Hydraulic Press is the ideal choice for professional workshops looking for reliability, power, and ease of use in a single machine. Discover our alternative presses for lighter or heavier applications and always find the perfect solution for your workshop!

Article number: 23084-E
