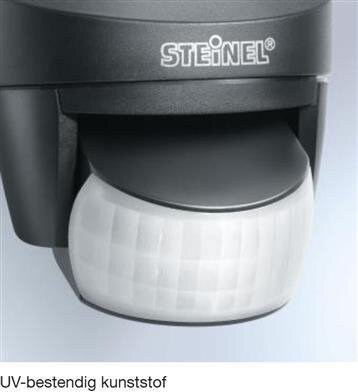

Steinel Infrared motion detector IS 140-2 black

Steinel has now provided this classic with even more class. With even larger adjustment angles horizontally and vertically for targeted detection at home at a detection angle of 140 °, even more range (up to 14 m) and even more detection levels, the IS 140-2 enables even more complete surveillance. The optical system is equipped with precise, spherical Fresnel lenses, which enable even better registration of people and a uniquely constant range. The setting options: precise adjustment of the registration area through the horizontally 180 ° and vertically 90 ° rotatable optical system. In addition, the registration area can be reduced with the supplied cover plates. The IS 140-2 has a simple setting of time and switch-on level by means of rotary knobs on the underside of the sensor lens. Thanks to the large, clearly arranged connection chamber, the infrared motion detector IS 140-2 is quickly and easily connected and mounted on the wall or corner - the appropriate corner wall bracket for this is available as an accessory. Both surface-mounted and flush-mounted can be selected for the cables.

Special characteristics

• Ideal for targeted home surveillance
• Range up to 14 m
• For outside and inside

Specifications:
Article number: 608811
Barcode: 4007841608811
Brand: STEINEL
Net weight (kg): 0.248
Free animal zone: No.
Antibacterial: 235; le Treatment: No.
Override switch: Yes
Colour black
Connection method: Other
Constant light control: No.
Creep-under protection: Yes
Degree of protection (IP): IP54
Depth: 99 mm
Reach angle horizontal: 140 - 140 &: 176;
Diameter reach on the floor: 6 m
Dimming function with dimmer insert: No.
Forced shutdown: Yes
Forced arming: No.
Frequency: 50 - 50 Hz
Halogen Free: Yes
Height: 99 mm
HVAC control: No.
Interface: COM1
Material: Plastic
Quality class: Thermoplastic
Max. follow-up time: 35 min
Max. inrush current: 120 A.
Max. switching power: 1000 W.
Max. range frontal: 14 m
Max. range sideways: 14 m
Min. follow-up time: 8 s
Version: Motion sensor
Mounting method: Other
Connectable to network: Yes
Nom. voltage: 240 V.
Number of switching zones: 144
Optimal mounting height: 2 m
Swivel range sensor, horizontal: 180 - 180 &: 176;
Swivel range sensor, vertical: 90 - 90 &: 176;
RAL Number (similar): 9005
Remote control: No.
Response brightness adjustable: Yes
Response brightness: 2 - 2000 lx
Response sensitivity adjustable: No.
Sensor type: Passive infrared
Staircase monitoring: No.
Auxiliary unit input: No.
Suitable for ceiling mounting: No.
C-Tax: Yes
Suitable for wall mounting: Yes
Suitable for wireless: No.
Surface protection: Other
Switch-off delay: 480 s
Self-learning function for response brightness: No.
Temperature: -20 - 50 &: 176; C
Transparent: No.
Voltage type: AC
Width: 86 mm
With alarm function: No.
With DALI interface: No.
With remote control: No.
With signal unit: No.
